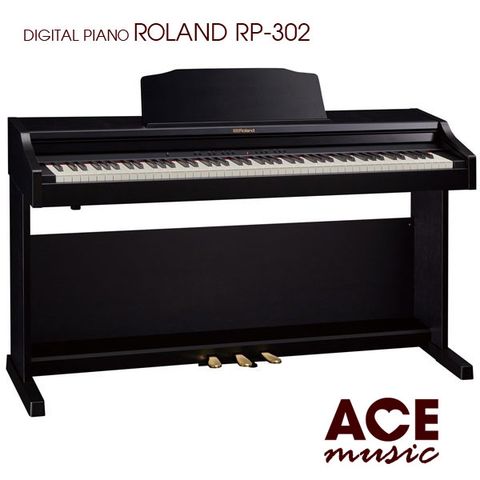

ROLAND RP302 ĐÀN PIANO ĐIỆN

KEYBOARD

- Keyboard: 88 keys (Ivory Feel-G keyboard with Escapement)

- Touch Sensitivity

Key Touch: 5 types, fixed touch

- Keyboard Mode

Whole

Dual (volume balance adjustable)

Split (split point adjustable)

Twin Piano

- Pedals

Damper (capable of continuous detection)

Soft (capable of continuous detection)

Sostenuto

SOUND GENERATOR

- Piano Sound: SuperNATURAL Piano Sound

- MIDI Format: Conforms to GM2, GS, XGlite

- Max. Polyphony: 128 voices

- Tones

Piano: 11 tones

Other: 305 tones (including 8 drum sets, 1 SFX set)

- Stretched Tuning: 2 types (Always On)

- Master Tuning: 415.3–466.2 Hz (adjustable in increments of 0.1 Hz)

- Transpose: Key Transpose: -6–+5 (in semitones)

- Effects

Ambience (Off, 10 levels)

Brilliance (21 levels)

Only for Piano Tones:

Damper Resonance (Always On)

String Resonance (Always On)

Key Off Resonance (Always On)

METRONOME

- Tempo: Quarter note = 10–500

- Beat: 2/2, 0/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 6/8, 9/8, 12/8

- Volume: 100 levels

SMF RECORDER

- Parts: 1 part

- Save Song: Standard MIDI Files (Format 0)

- Songs

Internal memory: Max. 10 songs

External memory: Max. 99 songs

- Note Storage: Approx. 30,000 notes

- Control

Song Select

Play/Stop

Rec

Rewinding

Fast-forwarding

Top of song

Part Mute

Tempo

All Songs Play

Count-in

Song Balance

- Tempo: Quarter note = 10–500

- Resolution: 120 ticks per quarter note

AUDIO

- Playback

File Format: Audio File (WAV 44.1 kHz, 16-bit linear format)

- Control

Song Select

Play/Stop

Rewinding

Fast-forwarding

Top of song

All Songs Play

Song Balance

Center Cancel

INTERNAL MEMORY

- Save Song: Standard MIDI Files (Format 0)

- Songs: Max. 10 songs

- Internal Songs

Piano Masterpieces: 69 songs

Easy Piano: 8 songs

Czerny: 100 songs

Hanon: 20 songs

Scale: 36 songs

EXTERNAL MEMORY

- External Storage: USB Flash Memory

- Playable Software

Standard MIDI Files (Format 0, 1)

Audio File (WAV, 44.1 kHz, 16-bit linear format)

- Save Song: Standard MIDI Files (Format 0)

- Songs: Max. 99 songs

OTHER

- Display: 7 segments x 3 LED

- Keyboard Lid: Slide type

- Other Functions

Panel Lock

Auto Off

- Connectors

DC In jack

Input jack: Stereo miniature phone type

Output jack: Stereo miniature phone type

USB COMPUTER port: USB Type B

USB MEMORY port: USB Type A

Phones jacks x 2: Stereo miniature phone type, Stereo 1/4-inch phone type

RATED POWER OUTPUT

- Rated Power Output: 12 W x 2

- Volume Level (SPL): 103 dB (This value was measured according to the method that is based on

Roland’s technical standard.)

- Speakers: 12 cm (4-3/4 inches) x 2

- Headphones

Effects: Headphones 3D Ambience

- Controls

Volume (with the speaker volume and the headphones volume automatically select function, with the

volume limit function)

- Accessories

Owner’s manual

Assembly manual

Leaflet “USING THE UNIT SAFELY”

AC Adaptor

Power Cord (for AC Adaptor)

Headphone hook

Music rest

- Options (sold separately)

Headphones

USB Flash Memory (*1)

*1 Use USB Flash Memory sold by Roland. We cannot guarantee operation if other products are used.

POWER SUPPLY

- Power Supply: AC adaptor

- Power Consumption

9 W (3–22 W)

9 W: Average power consumption while piano is played with volume at center position

3 W: Power consumption immediately after power-up; nothing being played

22 W: Rated power consumption

SIZE (INCLUDING PIANO STAND, WITH MUSIC REST)

- Width: 1,378 mm

- Depth: 423 mm

- Height: 992 (H) mm.
